- Certification: CE,FCC
- Model Number: AS926
- Type: Tachometer
- Materi: ABS plastic
- Temperature range: 0~50/32F~122F
- Resolution: 0.1RPM 100~999.9RPM,1 RPM to1000~30000RP
- Measurement Distance: 50~400mm/2~16in
- Test select: Automatic switching
- Energy consumption: About 50MA
- Work temperature: 0-50℃
- Data storage/ data storage: yes
- Battery status indication: Yes
- Size: 50*26*135mm
- Screen: LCD backlight display
- Measuring range: 100RPM~30000RPM
- Time base: 6MHZ crystal oscillator
- Sampling time: 0.8 s(over 60RPM)
- Power supply: 3 x 1.5V AAA batteries(not included)
- Data compensation: Yes
- MAX! Value, minimum value: yes
- Energy consumption1: About 50MA
Features:
1. Applying MCU, photoelectricity and laser semiconductor technology, realize non-contact rotary tempo measurement.
2. Wide measurement range and high resolution. Large LCD screen.
3. Solid structure built with durable electronics and lightweight ABS plastic house.
4. Automatically stores the maximum, minimum and last value
5. Low battery indication, it has elegant and easy to use.
Description:

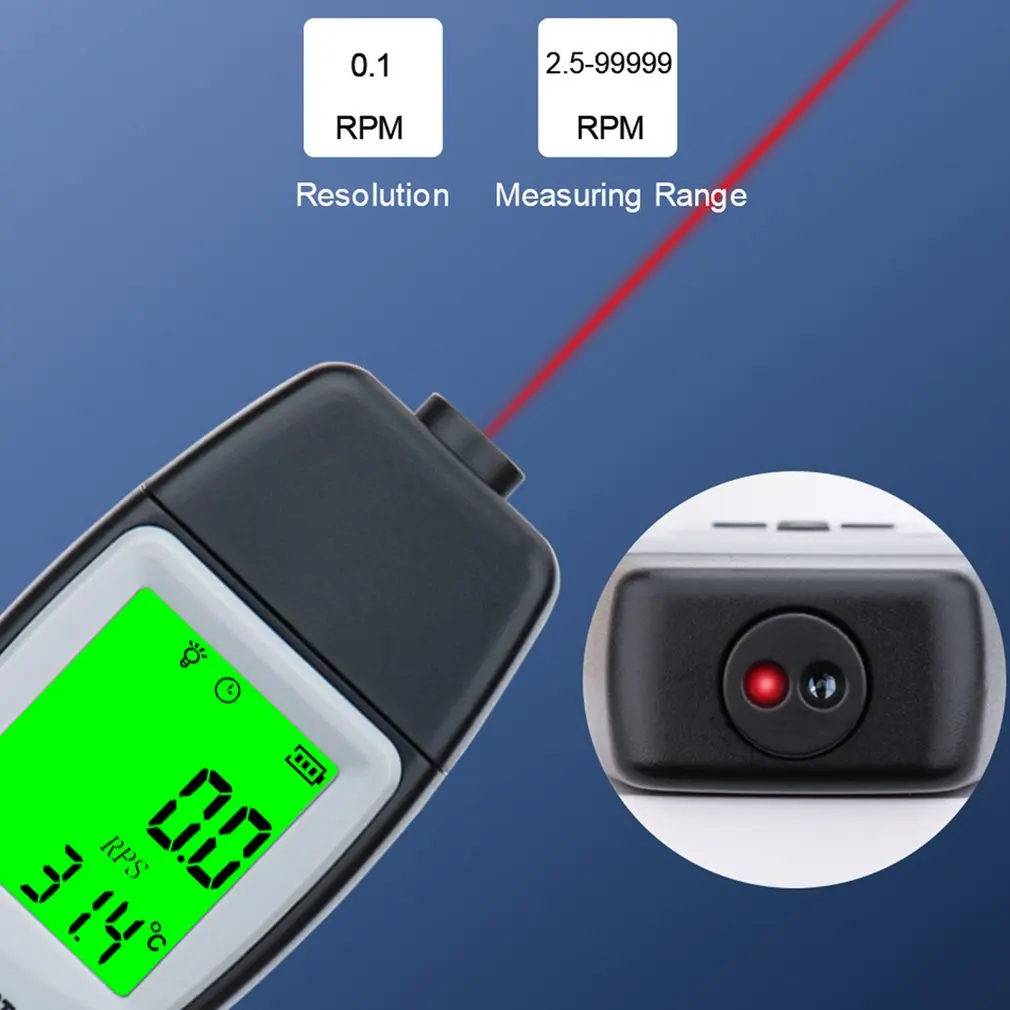

The smart SENSOR tachometer (RPM indicator) is an instrument that measures the rotational tempo of a shaft or disc, as in a motor or other machine. The device generally displays revolutions per minute (RPM) on a digital display. Applying MCU, laser semiconductor photoelectricity and technology, realize non-contact rotation tempo measurement.
Specifications:
Materi:ABS plastic
Temperature range:0~50/32F~122F
Resolution:0.1RPM 100~999.9RPM,1 RPM to1000~30000RP
Measurement Distance:50~400mm/2~16in
Test select:Automatic switching
Energy consumption:About 50MA
Work temperature:0-50℃
Data storage/ data storage:yes
Battery status indication:Yes
Size: 50*26*135mm
Model:AS926
Screen:LCD backlight display
Measuring range:100RPM~30000RPM
Precision:士(0.05%+1 digit))
Time base:6MHZ crystal oscillator
Sampling time:0.8 s(over 60RPM)
Power supply:3 x 1.5V AAA batteries(not included)
Data compensation:Yes
MAX! Value, minimum value:yes
Energy consumption:About 50MA
Package Included:
1 set * Speedometer(battery not included)
Notes:
1. Please allow 0-1 inch error due to manual measurement. Thanks for your understanding.
2. Monitors are not calibrated same, item color displayed in photos may be showing slightly different from real object.
